Sonicators

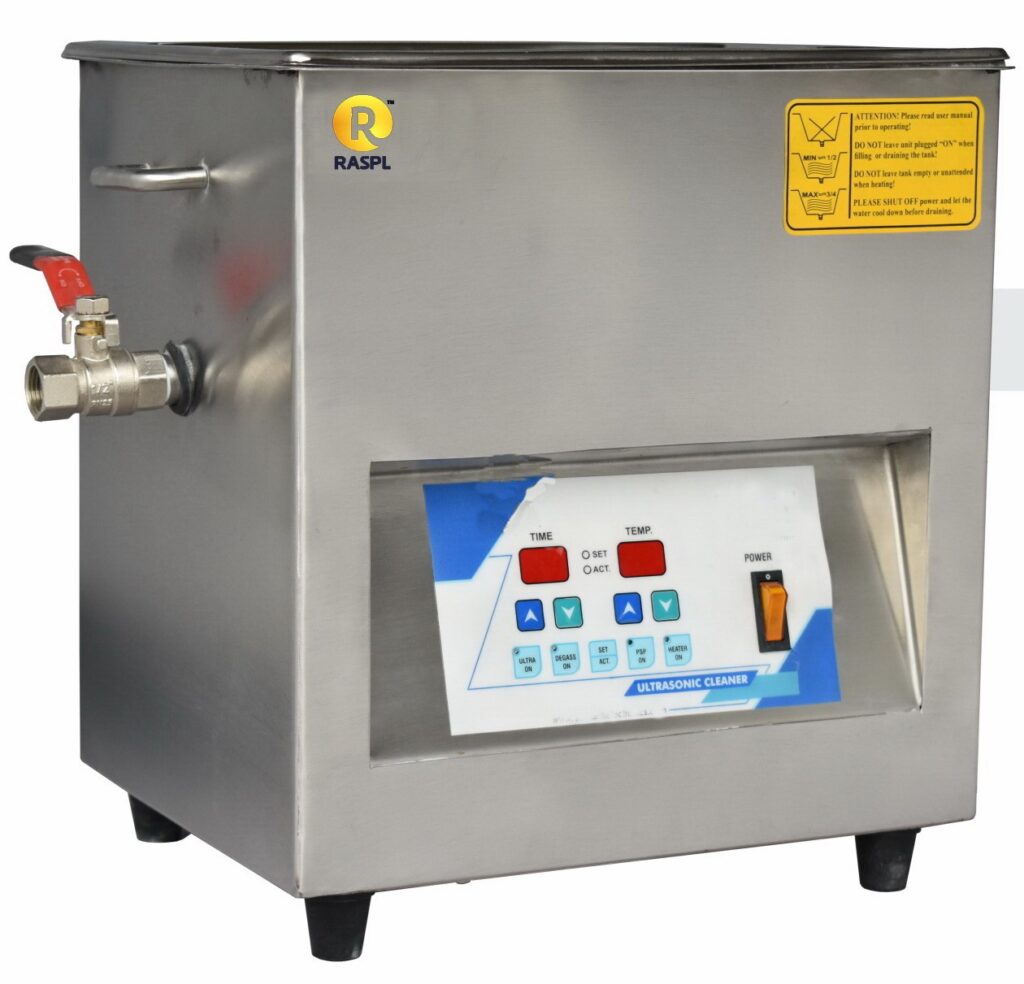

SALIENT FEATURES OF ULTRASONIC CLEANING CHAMBER

  • Imported PZT Sandwich type bonded at the bottom of the tank with weld bond technique.
  • High Frequency Built in IGBT based SMPS Modules.
  • Control Panel Consisting of:
    • Digital Display Timer (0-99 Min)
    • Digital Display Temperature Controller (Abt-60°C max).
    • PSP
    • Degass
    • Heater Switch .
    • SET/ACT mode switch
    • Ultra On switch
    • UP/DOWN keys for both the Time /Temperaturer parameter.
    • Power switch.
    • 1 mtrs Mains cord
  • Digital tuning of transducers with generators to avoid frequency shift.
  • Extensive protected generator circuits for longer & safer operation.
  • Drain with Ball valve will be provided.
  • SS 304 basket will be provided 1No’s along with the system.
  • IQ/OQ/PQ reports in our STD format with calibration report.
Part No. Tank Capacity (ltr) Tank Size mm Enclosure size mm U/S Power Heater Power
RAS-UB-2 2 240 x 135 x 65 265 x 162 x 200 50W NA
RAS-UB-3 3 240 x 135 x 100 265 x 162 x 250 100W 100W
RAS-UB-4.5 4.5 300 x 150 x 100 325 x 176 x 240 100W 100W
RAS-UB-5 5 230 x 230 x 100 265 x 265 x 250 100 W 200 W
RAS-UB-7 7 300 x 240 x 100 320 x 260 x 320 150 W 200 W
RAS-UB-10 10 300 x 240 x 150 325 x 270 x 400 200W 200W
RAS-UB-15 15 500 x 300 x 100 525 x 320 x 400 300 W 200 W
RAS-UB-20 20 500 x 300 x 150 525 x 320 x 400 400 W 500 W
